How to load and draw 3D models with ASSIMP?

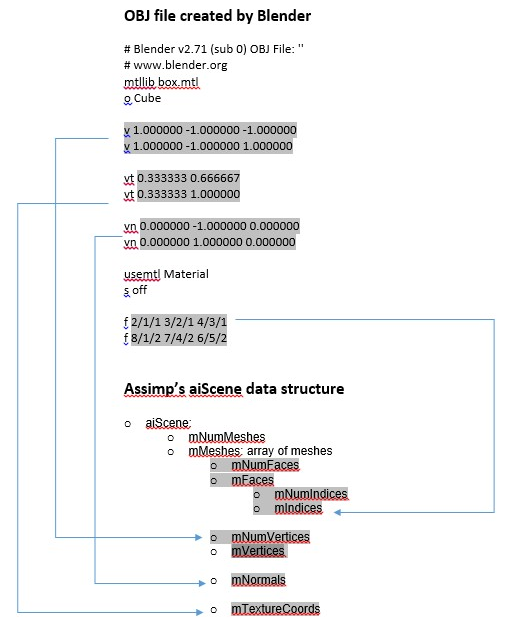

# Blender v2.71 (sub 0) OBJ File: ''
# www.blender.org
mtllib simple_box.mtl
o Cube
v 1.000000 -1.000000 -1.000000
v 1.000000 -1.000000 1.000000
v -1.000000 -1.000000 1.000000
v -1.000000 -1.000000 -1.000000
v 1.000000 1.000000 -0.999999
v 0.999999 1.000000 1.000001
v -1.000000 1.000000 1.000000
v -1.000000 1.000000 -1.000000
usemtl Material
s off
f 2 3 4
f 8 7 6
f 1 5 6
f 2 6 7
f 7 8 4
f 1 4 8
f 1 2 4
f 5 8 6
f 2 1 6
f 3 2 7
f 3 7 4
f 5 1 8

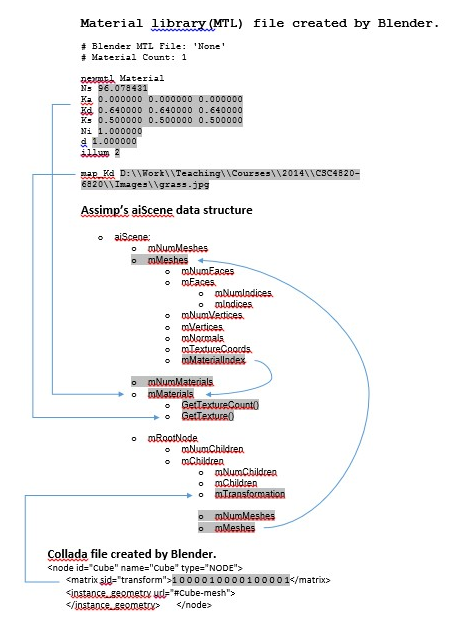

<?xml version="1.0" encoding="utf-8"?>
<COLLADA xmlns="http://www.collada.org/2005/11/COLLADASchema" version="1.4.1">
  <asset>
    <contributor>
      <author>Blender User</author>
      <authoring_tool>Blender 2.71.0 commit date:2014-06-25, commit time:18:36, hash:9337574</authoring_tool>
    </contributor>
    <created>2014-09-23T10:42:50</created>
    <modified>2014-09-23T10:42:50</modified>
    <unit name="meter" meter="1"/>
    <up_axis>Z_UP</up_axis>
  </asset>
  <library_cameras>
    <camera id="Camera-camera" name="Camera">
      <optics>
        <technique_common>
          <perspective>
            <xfov sid="xfov">49.13434</xfov>
            <aspect_ratio>1.777778</aspect_ratio>
            <znear sid="znear">0.1</znear>
            <zfar sid="zfar">100</zfar>
          </perspective>
        </technique_common>
      </optics>
      <extra>
        <technique profile="blender">
          <YF_dofdist>0</YF_dofdist>
          <shiftx>0</shiftx>
          <shifty>0</shifty>
        </technique>
      </extra>
    </camera>
  </library_cameras>
  <library_lights>
    <light id="Lamp-light" name="Lamp">
      <technique_common>
        <point>
          <color sid="color">1 1 1</color>
          <constant_attenuation>1</constant_attenuation>
          <linear_attenuation>0</linear_attenuation>
          <quadratic_attenuation>0.00111109</quadratic_attenuation>
        </point>
      </technique_common>
      <extra>
        <technique profile="blender">
          <adapt_thresh>0.000999987</adapt_thresh>
          <area_shape>1</area_shape>
          <area_size>0.1</area_size>
          <area_sizey>0.1</area_sizey>
          <area_sizez>1</area_sizez>
          <atm_distance_factor>1</atm_distance_factor>
          <atm_extinction_factor>1</atm_extinction_factor>
          <atm_turbidity>2</atm_turbidity>
          <att1>0</att1>
          <att2>1</att2>
          <backscattered_light>1</backscattered_light>
          <bias>1</bias>
          <blue>1</blue>
          <buffers>1</buffers>
          <bufflag>0</bufflag>
          <bufsize>2880</bufsize>
          <buftype>2</buftype>
          <clipend>30.002</clipend>
          <clipsta>1.000799</clipsta>
          <compressthresh>0.04999995</compressthresh>
          <dist sid="blender_dist">29.99998</dist>
          <energy sid="blender_energy">1</energy>
          <falloff_type>2</falloff_type>
          <filtertype>0</filtertype>
          <flag>0</flag>
          <gamma sid="blender_gamma">1</gamma>
          <green>1</green>
          <halo_intensity sid="blnder_halo_intensity">1</halo_intensity>
          <horizon_brightness>1</horizon_brightness>
          <mode>8192</mode>
          <ray_samp>1</ray_samp>
          <ray_samp_method>1</ray_samp_method>
          <ray_samp_type>0</ray_samp_type>
          <ray_sampy>1</ray_sampy>
          <ray_sampz>1</ray_sampz>
          <red>1</red>
          <samp>3</samp>
          <shadhalostep>0</shadhalostep>
          <shadow_b sid="blender_shadow_b">0</shadow_b>
          <shadow_g sid="blender_shadow_g">0</shadow_g>
          <shadow_r sid="blender_shadow_r">0</shadow_r>
          <sky_colorspace>0</sky_colorspace>
          <sky_exposure>1</sky_exposure>
          <skyblendfac>1</skyblendfac>
          <skyblendtype>1</skyblendtype>
          <soft>3</soft>
          <spotblend>0.15</spotblend>
          <spotsize>75</spotsize>
          <spread>1</spread>
          <sun_brightness>1</sun_brightness>
          <sun_effect_type>0</sun_effect_type>
          <sun_intensity>1</sun_intensity>
          <sun_size>1</sun_size>
          <type>0</type>
        </technique>
      </extra>
    </light>
  </library_lights>
  <library_images/>
  <library_effects>
    <effect id="Material-effect">
      <profile_COMMON>
        <technique sid="common">
          <phong>
            <emission>
              <color sid="emission">0 0 0 1</color>
            </emission>
            <ambient>
              <color sid="ambient">0 0 0 1</color>
            </ambient>
            <diffuse>
              <color sid="diffuse">0.64 0.64 0.64 1</color>
            </diffuse>
            <specular>
              <color sid="specular">0.5 0.5 0.5 1</color>
            </specular>
            <shininess>
              <float sid="shininess">50</float>
            </shininess>
            <index_of_refraction>
              <float sid="index_of_refraction">1</float>
            </index_of_refraction>
          </phong>
        </technique>
      </profile_COMMON>
    </effect>
  </library_effects>
  <library_materials>
    <material id="Material-material" name="Material">
      <instance_effect url="#Material-effect"/>
    </material>
  </library_materials>
  <library_geometries>
    <geometry id="Cube-mesh" name="Cube">
      <mesh>
        <source id="Cube-mesh-positions">
          <float_array id="Cube-mesh-positions-array" count="24">1 1 -1 1 -1 -1 -1 -0.9999998 -1 -0.9999997 1 -1 1 0.9999995 1 0.9999994 -1.000001 1 -1 -0.9999997 1 -1 1 1</float_array>
          <technique_common>
            <accessor source="#Cube-mesh-positions-array" count="8" stride="3">
              <param name="X" type="float"/>
              <param name="Y" type="float"/>
              <param name="Z" type="float"/>
            </accessor>
          </technique_common>
        </source>
        <source id="Cube-mesh-normals">
          <float_array id="Cube-mesh-normals-array" count="36">0 0 -1 0 0 1 1 -5.66244e-7 3.27825e-7 -4.76837e-7 -1 0 -1 2.08616e-7 -1.19209e-7 2.08616e-7 1 2.38419e-7 0 0 -1 0 0 1 1 0 -2.38419e-7 0 -1 -2.98023e-7 -1 2.38419e-7 -1.49012e-7 2.68221e-7 1 1.78814e-7</float_array>
          <technique_common>
            <accessor source="#Cube-mesh-normals-array" count="12" stride="3">
              <param name="X" type="float"/>
              <param name="Y" type="float"/>
              <param name="Z" type="float"/>
            </accessor>
          </technique_common>
        </source>
        <vertices id="Cube-mesh-vertices">
          <input semantic="POSITION" source="#Cube-mesh-positions"/>
        </vertices>
        <polylist material="Material-material" count="12">
          <input semantic="VERTEX" source="#Cube-mesh-vertices" offset="0"/>
          <input semantic="NORMAL" source="#Cube-mesh-normals" offset="1"/>
          <vcount>3 3 3 3 3 3 3 3 3 3 3 3 </vcount>
          <p>0 0 1 0 2 0 7 1 6 1 5 1 4 2 5 2 1 2 5 3 6 3 2 3 2 4 6 4 7 4 4 5 0 5 3 5 3 6 0 6 2 6 4 7 7 7 5 7 0 8 4 8 1 8 1 9 5 9 2 9 3 10 2 10 7 10 7 11 4 11 3 11</p>
        </polylist>
      </mesh>
    </geometry>
  </library_geometries>
  <library_controllers/>
  <library_visual_scenes>
    <visual_scene id="Scene" name="Scene">
      <node id="Camera" name="Camera" type="NODE">
        <matrix sid="transform">0.6858805 -0.3173701 0.6548619 7.481132 0.7276338 0.3124686 -0.6106656 -6.50764 -0.01081678 0.8953432 0.4452454 5.343665 0 0 0 1</matrix>
        <instance_camera url="#Camera-camera"/>
      </node>
      <node id="Lamp" name="Lamp" type="NODE">
        <matrix sid="transform">-0.2908646 -0.7711008 0.5663932 4.076245 0.9551712 -0.1998834 0.2183912 1.005454 -0.05518906 0.6045247 0.7946723 5.903862 0 0 0 1</matrix>
        <instance_light url="#Lamp-light"/>
      </node>
      <node id="Cube" name="Cube" type="NODE">
        <matrix sid="transform">1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1</matrix>
        <instance_geometry url="#Cube-mesh">
          <bind_material>
            <technique_common>
              <instance_material symbol="Material-material" target="#Material-material"/>
            </technique_common>
          </bind_material>
        </instance_geometry>
      </node>
    </visual_scene>
  </library_visual_scenes>
  <scene>
    <instance_visual_scene url="#Scene"/>
  </scene>
</COLLADA>

scene = importer.ReadFile(pFile, aiProcessPreset_TargetRealtime_Quality);

// For each mesh in the aiScene object
for (unsigned int n = 0; n < sc->mNumMeshes; ++n)
{
    // Get the current aiMesh object.
    const aiMesh *mesh = sc->mMeshes[n];

    // Create a one dimensional array to store face indices
    unsigned int *faceArray;
    faceArray = (unsigned int *)malloc(sizeof(unsigned int) * mesh->mNumFaces * 3);
    unsigned int faceIndex = 0;

    // Copy face indices from aiMesh to faceArray.
    // In an aiMesh object, face indices are stored in two layers. There is an array of aiFace, and then each aiFace stores 3 indices.
    // Must copy face indices to a one dimensional array so that it can be used in OpenGL functions.
    for (unsigned int t = 0; t < mesh->mNumFaces; ++t)
    {
        const aiFace *face = &mesh->mFaces[t]; // Go through the list of aiFace

        // For each aiFace, copy its indices to faceArray.
        memcpy(&faceArray[faceIndex], face->mIndices, 3 * sizeof(unsigned int));
        faceIndex += 3;
    }
    aMesh.numFaces = sc->mMeshes[n]->mNumFaces; // Record the number of faces.

// Generate and bind a vertex buffer object for face indices (also called elements)
glGenBuffers(1, &buffer);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, buffer);
// Transfer the faceArray to the vertex buffer object.
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(unsigned int) * mesh->mNumFaces * 3, faceArray, GL_STATIC_DRAW);

if (mesh->HasPositions())
{
    // Generate a Vertex Buffer Object (VBO) for vertex positions
    glGenBuffers(1, &buffer);
    glBindBuffer(GL_ARRAY_BUFFER, buffer);
    // Transfer the vertex position array (stored in aiMesh's member variable mVertices) to the VBO.
    glBufferData(GL_ARRAY_BUFFER, sizeof(float) * 3 * mesh->mNumVertices, mesh->mVertices, GL_STATIC_DRAW);

    // Link this VBO with a variable in the vertex shader.
    // Each VBO must be linked with a "in" variable in the vertex shader.
    glEnableVertexAttribArray(vertexLoc);
    glVertexAttribPointer(vertexLoc, 3, GL_FLOAT, 0, 0, 0);
}

if (mesh->HasNormals())
{
    // Generate a Vertex Buffer Object (VBO) for vertex normals
    glGenBuffers(1, &buffer);
    glBindBuffer(GL_ARRAY_BUFFER, buffer);
    // Transfer the vertex position array (stored in aiMesh's member variable mNormals) to the VBO.
    glBufferData(GL_ARRAY_BUFFER, sizeof(float) * 3 * mesh->mNumVertices, mesh->mNormals, GL_STATIC_DRAW);

    // Link this VBO with a variable in the vertex shader.
    // Each VBO must be linked with a "in" variable in the vertex shader.
    glEnableVertexAttribArray(normalLoc);
    glVertexAttribPointer(normalLoc, 3, GL_FLOAT, 0, 0, 0);
}

if (mesh->HasTextureCoords(0))
{ // Assuming only one texture is attached to this mesh

    float *texCoords = (float *)malloc(sizeof(float) * 2 * mesh->mNumVertices);
    for (unsigned int k = 0; k < mesh->mNumVertices; ++k)
    {
        // Go through the array of texture coordinates and copy them to a one-dimensional array.
        // Note that in Assimp the texture coordinates are not stored in a "flat" array.
        // The mTextureCoords variable in aiMesh is a 2D array.
        // The first dimension is the number of textures associated with this mesh.
        // The second dimension is the number of vertices.
        // Assimp uses aiVector3D to store texture coordinates, but a texture coordinate only uses the first two components.
        texCoords[k * 2] = mesh->mTextureCoords[0][k].x;
        texCoords[k * 2 + 1] = mesh->mTextureCoords[0][k].y;
    }

    // Generate a Vertex Buffer Object (VBO) for vertex texture coordinates
    glGenBuffers(1, &buffer);
    glBindBuffer(GL_ARRAY_BUFFER, buffer);

    // Transfer the texture coordinate array to the VBO.
    glBufferData(GL_ARRAY_BUFFER, sizeof(float) * 2 * mesh->mNumVertices, texCoords, GL_STATIC_DRAW);

    // Link this VBO with a variable in the vertex shader.
    // Each VBO must be linked with a "in" variable in the vertex shader.
    glEnableVertexAttribArray(texCoordLoc);
    glVertexAttribPointer(texCoordLoc, 2, GL_FLOAT, 0, 0, 0);
}

void recursive_render(const aiScene *sc, const aiNode *nd)
{
    // draw all meshes assigned to this node
    for (unsigned int n = 0; n < nd->mNumMeshes; ++n)
    {
        // Bind VAO, which contains the VBOs for indices, positions, normals, and texture coordinates
        // of the current mesh for the current node.
        // Each node in aiScene has an index (nd->mMeshs[n]) into the aiMesh array (see Figure 2).
        // In previous steps, each aiMesh in the aiMesh array has been transferred to a Vertex Array Object (VAO).
        // The indices of these VBOs are stored in an array myMeshes[].
        // The aiMesh array in an aiScene object and the myMeshes[] array is perfectly aligned.
        // That is, the first mesh in the aiMesh list corresponds to the first mesh on the myMeshes[] array, and so on.
        // Therefore, myMeshes[0].vao is the index of the VAO for the first aiMesh in the aiScene object, and so on.
        glBindVertexArray(myMeshes[nd->mMeshes[n]].vao);

        // Use glDrawElements() to draw the 3D object because we have an index buffer in the VAO.
        glDrawElements(GL_TRIANGLES, myMeshes[nd->mMeshes[n]].numFaces * 3, GL_UNSIGNED_INT, 0);
    }

    // Draw all THE children
    for (unsigned int n = 0; n < nd->mNumChildren; ++n)
    {
        recursive_render(sc, nd->mChildren[n]);
    }
}

// Rendering Callback Function

void renderScene(void)
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    // Specify a particular shader program object to draw the next object.
    glUseProgram(program);

    // Traverse the node graph in the aiScene object and draw the meshes attached to each node.
    // Some nodes may not have mesh attached.
    recursive_render(scene, scene->mRootNode);

    // Swap front and back color buffers so that the image is displayed.
    glutSwapBuffers();
}
